| SS100 |
|

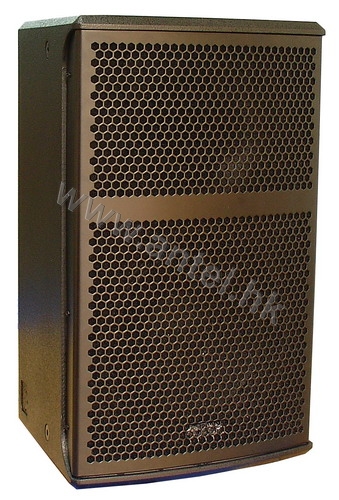

| 1*10" Two-Way Full Range Speaker |
| |
|
|
| Applications |
|
| ★ |
Main speaker for the convention hall |
| ★ |
Multi-purpose hall |
|
| ★ |
Main speaker and aux speakers for nightclubs or discos |
| ★ |
Auditorium,theatre,church |
|
| ★ |
Live sound reinforcement |
|
| |
|
|
| Specifications |
|
| |
Frequency response |
85Hz-18KHz (±4dB) |
| |
|
60Hz-19KHz (-10dB) |
| |
Sensitivity (1W/1m) |
92dB (90Hz - 13KHz) |
| |
Nominal impedance |
8Ω |
| |
Power rated (AES) |
200W |
| |
Dispersion (HxV) |
80°*80° |
| |
Crossover |
3KHz |
| |
HF |
1'' exit compression driver,34mm (1.36'') voice coil |
| |
LF |
10"/50mm voice coil |
| |
SPL |
115dB continuous,121dB peak |
| |

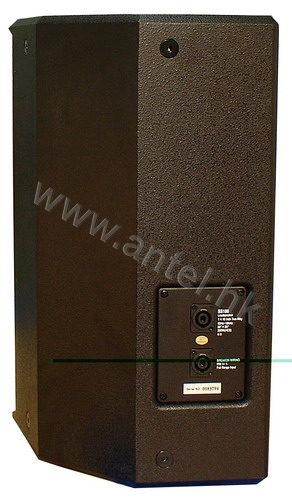

Connector |
2 SPEAKON NL4MP 1+1- |
| |
Fittings |
10*M10, 1*Pole mount socket |
| |
Dimension (w*D*H) |
325*292*519mm |
| |
Weight |
15kg |
