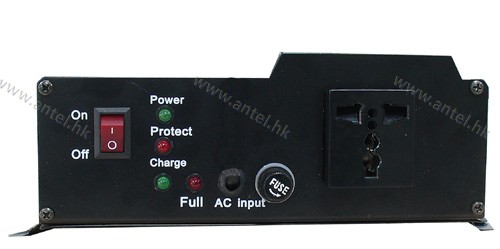

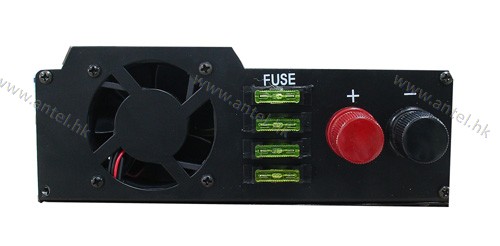

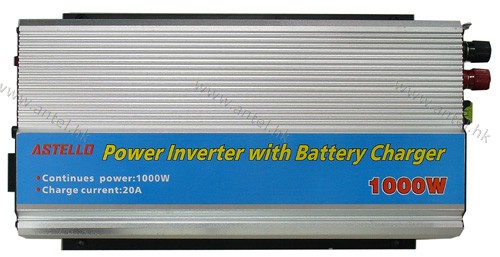

click the above pictures to check larger ones>>>

Specifications:

Max. Continuous Power:

1000W

Surge Capability(Peak power):

1500W

Optimum Efficiency:

90%

No load Current Draw:

1.3A

Waveform:

Modified Sine Wave

Input Voltage Range:

10-15 Volts DC

Low Battery Alarm:

10.5+/-.5 VDC

Low Battery Shutdown:

10.0+/-.5 VDC

Alarm & Thermal Shutdown:

55+/-5 degrees C -99+/-9 degrees F

Overload Protection:

Reset button

Short Circuit Protection:

Use Replaceable Fuses

Weight:

4Kg

Dimensions:

45*21*8.5cm
