| Code: | DAC20-110 |  |

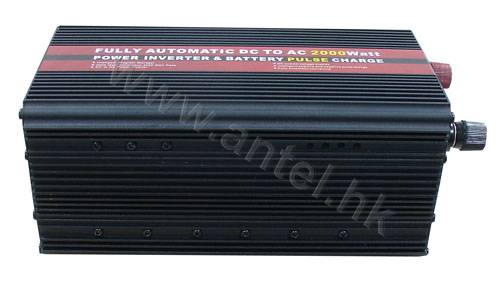

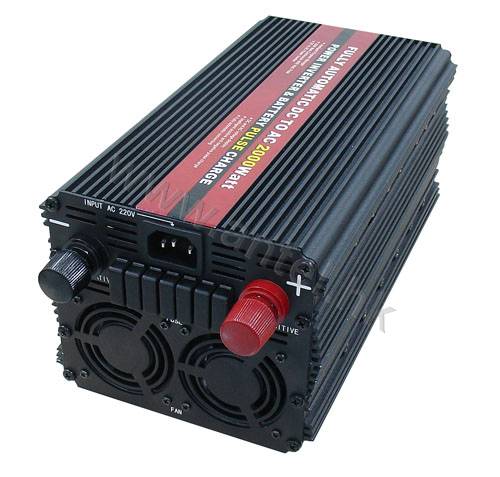

| Name: | DC12V to AC220V inverter with charger,various protections,2000W |
 |
| (1) Invert part | ||
|
Rate Power: |
2000W | |
|
Output Continuous Power: |
2000W | |
|
Output Peak Power: |
4000W | |
|
Input |
DC Input Voltage: | 12V |
| DC Work Voltage: | 11-15V | |
| DC Input Low Voltage Protection: | 9V-10.5V | |
| DC Input Lack Voltage Alarm: | 9.5V-11V | |
| DC Input Over Voltage Protection: | ≥15V | |
| DC Input Fuse: | 40A*7 | |
| DC Input Parameter: | ||
|
Output |
AC Output Waveform: | Modified sine wave |
| AC Output Voltage: | 110V+5% | |
| AC Output Frequency: | 60Hz+1% | |
| AC Output Parameter: | ||
| Static Current: | ≤1A | |
| Conversion Efficiency: | ≥85% | |
| Over Load Protection: | 2000W-2400W | |
| Short Circuit Protection: | Yes | |
| Working Temperature: | -10℃+50℃ | |
| Temperature protection: | 60℃+70℃ | |
| Measurement: | 300mm*150mm*124mm | |
| Weight: | 4300g+150g | |

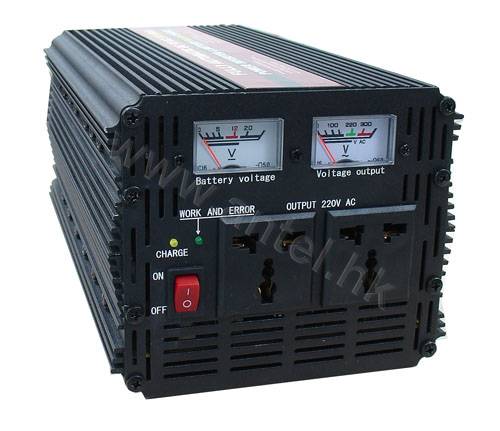

| Green LED Indicator: | Light (work), flash slowly (lack voltage alarm), flash fast (fault occur and the unit in protection condition) | |
|
(2) Charge part: |
|||
|
Input |
AC Input Voltage: |
220V |
220V |
|
AC Input Frequency: |
50Hz/60Hz |
50Hz/60Hz |
|
|
AC Working Voltage: |
170V-250V |
170V-250V |
|
|
AC Input Low Voltage Protection: |
≤150V |
≤150V |
|
|
AC Input High Voltage Protection: |
≥250V |
≥250V |
|
|
AC Input Fuse: |
10A |
15A |
|
|
AC Input Parameter: |
|
|
|
|
Output |
Charge Style: |
Intelligent positive & negative pulse charge |
|
|
Charge Process: |
Prep charge, main charge, float charge, charge fully |
||
|
Charge Current: |
Maximum 115A |
||
|
Charge Voltage: |
14.5V-16V |
29V-32V |
|
|
Time of Fully Automatic Converting: |
<0.5S |
||
|
Conditions from Inverter to AC Supply: |
In the normal AC input voltage |
||
|
Conditions from AC Supply to Inverter: |
No AC input or AC input protection happen |
||
|
Yellow LED Indicatior: |
Light (fully charge), flash (charging), extinguish (no AC supply or in AC input voltage protection station) |
||
