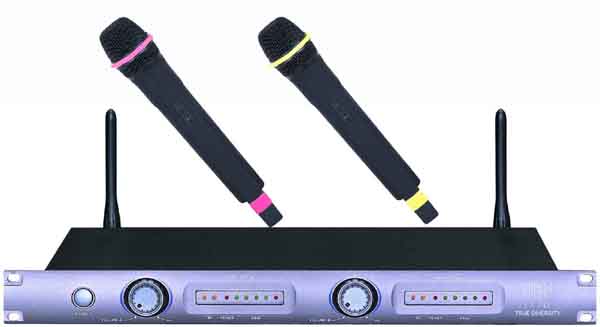

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-15KHz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥90dB

Operating range : 100M

Operating temperature Range: 5℃-55℃

Carrier frequency: 210-270MHz

Sensitivity (S/N=30dB): < 2μ V

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.5V

Power Supply: AC220V -240 V

Current consumption: 5W

Dimensions: 260*160*45mm

Weight: Appr. 1250g

Frequency stability: ±0.005%

RF Output power: ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 45KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 3V

Current Consumption: 80mA

Dimensions:40(D)*250(L)mm

Weight:.160g
