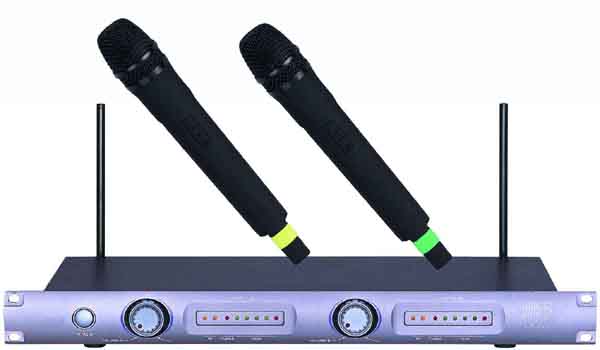

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-15KHz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥90dB

Operating range : 80M

Operating temperature Range: 5℃-45℃

Carrier frequency: 210-270MHz

Sensitivity (S/N=30dB): < 2μ V

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.5V

Power Supply: DC17 V

Current consumption: 5W

Dimensions: 420*250*55mm

Weight: Appr. 2500g

Frequency stability: ±0.005%

RF Output power: ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 45KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 1.5V

Current Consumption: <80mA

Dimensions:40(D)*280(L)mm

Weight:.285g
