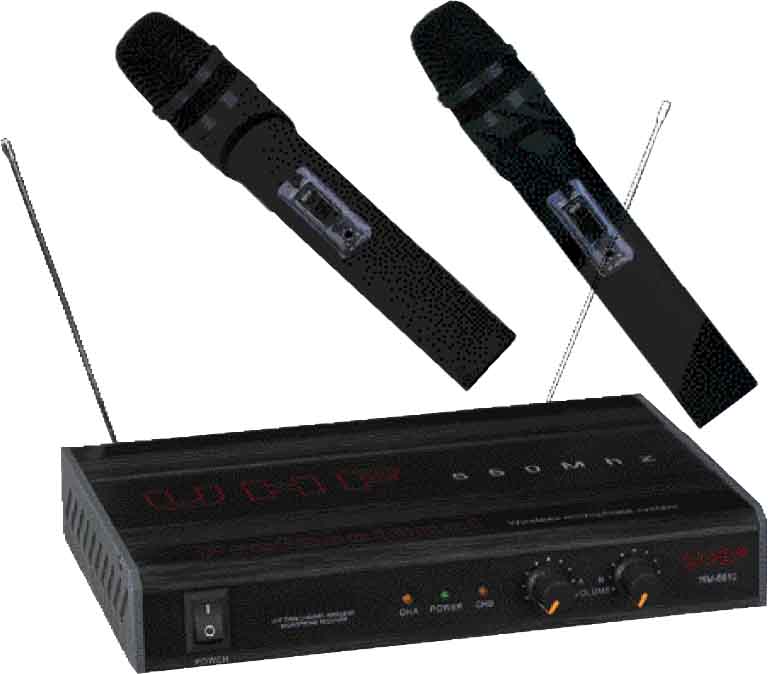

Overall System

Receiver

Transmitter

Audio Frequency Response : 40-15000Hz

Dynamic range :≥100dB

System distortion:≤0.5%

S/N Ratio :≥100dB

Operating range : 80M

Operating temperature Range: -5℃-45℃

Carrier frequency: 500-580MHz

Sensitivity (S/N=30dB): <2μV

Image rejection: >40dB

De-Emphasis: 75μS

Audio Output Impedance: 600 Ω

Audio Output level:300mV

Power Supply: 17 V /DC /300mA

Current consumption: 170mA

Dimensions: 215*205*53mm

Weight: Appr. 1200g

Frequency stability: < ± 30ppm

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 25KHz

Microphone mode: Dynamic

De-Emphasis: 75μS

Power supply: 4.5V Batt

Current Consumption: <70mA

Dimensions:53(D)*250(L)mm

Weight:. 235g
