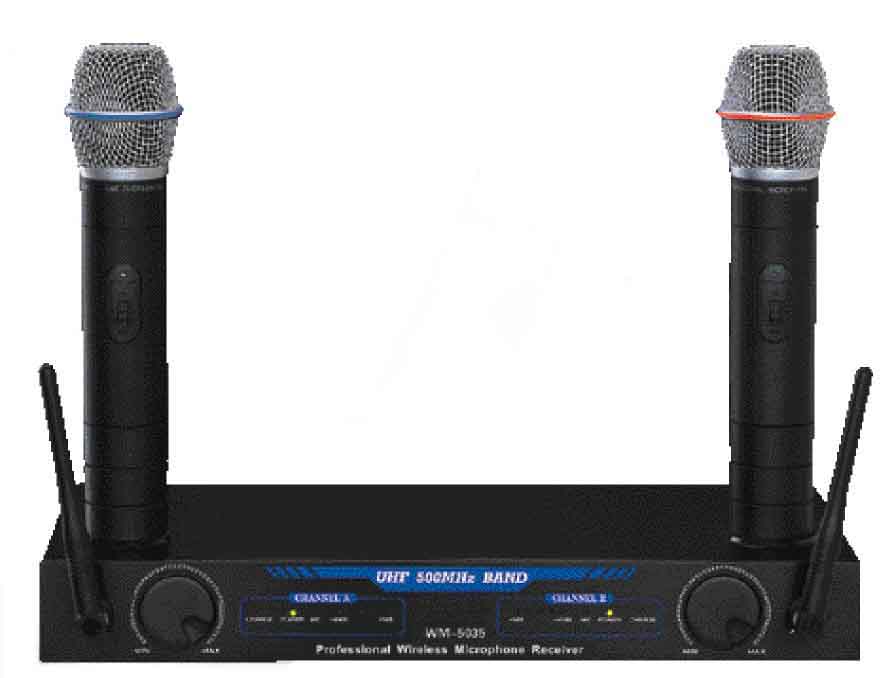

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12000Hz

Dynamic range :≥80dB

System distortion:≤1%

S/N Ratio :≥80dB

Operating range : 50M

Operating temperature Range: -5℃-45℃

Carrier frequency: 480-560MHz

Sensitivity (S/N=30dB): <2μV

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.5V

Power Supply: DC17 V

Current consumption: 5W

Dimensions: 480*200*52mm

Weight: Appr. 1700g

Frequency stability: ±0.005%

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 25KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 1.5V x 2 Batt

Current Consumption: <50mA

Dimensions:37(D)*250(L)mm

Weight:. 290g
