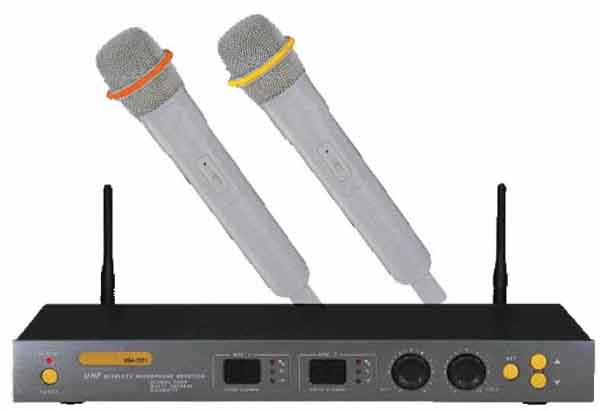

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12500Hz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥90dB

Operating range : 100M

Operating temperature Range: 5℃-45℃

Carrier frequency: 700-900MHz

Receiving system: Diversity receiver

Sensitivity (S/N=30dB): < 4μV

Image rejection: >60dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:1.1V

Power Supply: DC12 V

Current consumption: <500mA

Dimensions: 420*190*44mm

Weight: Appr. 1500g

Frequency stability: ±0.001%

RF Output power : ≤30mW

Spurious rejection: >50dB

Modulation mode: FM

Max deviation range: ±45KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 1.5V x 2 Batt

Current Consumption: ≤80mA

Dimensions:45(D)*220(L)mm

Weight:. 300g
