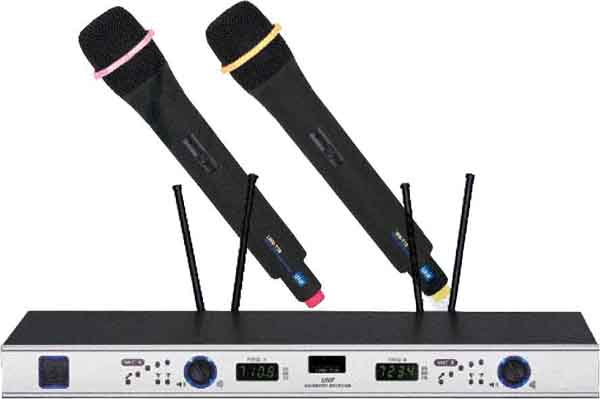

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12500Hz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥80dB

Operating range : 50M

Operating temperature Range: -5℃-45℃

Carrier frequency: 794-806MHz

Receiving system: Diversity receiver

Sensitivity (S/N=30dB): < 4μV

Image rejection: >60dB

Audio Output Impedance: 600 Ω

Audio Output level:1.1V

Power Supply: DC12 V

Current consumption: ≤300mA

Dimensions: 480*220*45mm

Weight: Appr. 2700g

Frequency stability: ±0.001%

RF Output power : ≤10mW

Spurious rejection: >50dB

Modulation mode: FM

Max deviation range: ±45KHz

Microphone mode: Dynamic

Power supply: 1.5V x 2 Batt

Current Consumption: ≤80mA

Dimensions:35(D)*270(L)mm

Weight:. 250g
