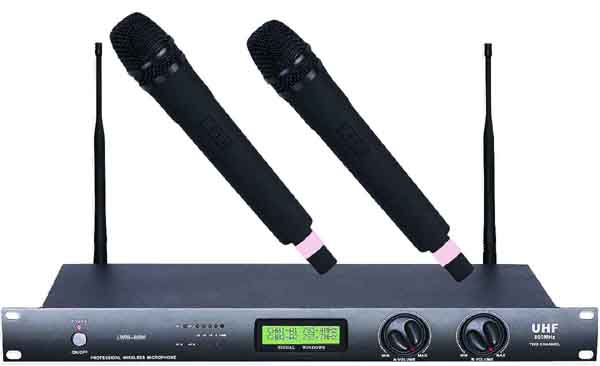

Overall System

Receiver

Handheld Transmitter

Audio Frequency Response : 50-15000Hz

Dynamic range :≥80dB

System distortion:≤1%

S/N Ratio :≥80dB

Operating range : 80M

Operating temperature Range: -10℃-45℃

Carrier frequency: 480-850MHz 700-900MHz

Sensitivity (S/N=30dB): <2 μV

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600Ω

Audio Output level: 0-0.5V

Power Supply: DC 17V

Current consumption: <500mA

Dimensions: 420*250*55mm

Weight: Appr. 2500g

Frequency stability: ±0.005%

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 45KHz

Microphone mode: Dynamic

Pre-emphasis: 50μS

Power supply: AA 1.5V x 2 Batt

Current Consumption: <90mA

Dimensions: 40(D)*280(L)mm

Weight:. 235g
