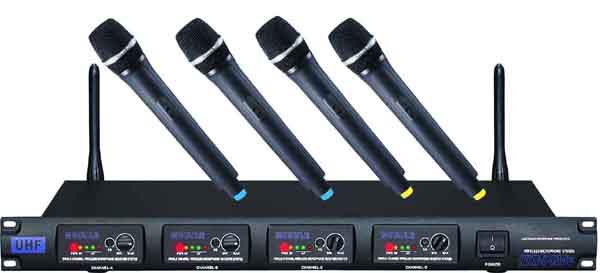

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-15000Hz

Dynamic range :≥110dB

System distortion:≤0.2%

S/N Ratio :≥90dB

Operating range : 100M

Operating temperature Range: -10℃-55℃

Carrier frequency: 480-850MHz

Sensitivity (S/N=30dB): ≤2 μV

Image rejection: >40dB

De-Emphasis: 50μS

Audio Output Impedance: 600Ω ± 10 %

Audio Output level: 0-0.5V

Power Supply: AC 110 V- 220 V

Current consumption: ≤800mA

Dimensions: 423*240*58mm

Weight: Appr. 2300g

Frequency stability: ±0.005%

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 45KHz

Microphone mode: Dynamic

Pre-emphasis: 50μS

Power supply: 1.5V Batt

Current Consumption: ≤80mA

Dimensions: 53(D)*250(L)mm

Weight:. 235g
