| Code: | SPW-YD200-04C to SPW-YD460-04C |  |
| Name: | woofer |

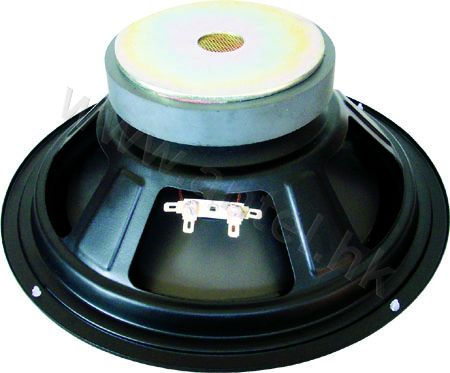

-04C.jpg) |
Specifications:
| SPW-YD200-04C to SPW-YD460-04C | Paper Cone With Foam Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-YD200-04C | 8" | 100x45x20 (20oz) | 1" ASV | 150 | 4 or 8 ohm | 55-5kHz | 90 dB/w.m |
| SPW-YD250-04C | 10" | 120x60x20 (30oz) | 1" ASV | 200 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-YD300-04C | 12" | 140x60x20 (40oz) | 1.5" ASV | 250 | 4 or 8 ohm | 35-4kHz | 93 dB/w.m |
| SPW-YD385-04C | 15" | 170x80x20 (60oz) | 2" ASV | 380 | 4 or 8 ohm | 25-4kHz | 94 dB/w.m |
| SPW-YD460-04C | 18" | 190x80x20 (80oz) | 3" ASV | 460 | 4 or 8 ohm | 25-2kHz | 94 dB/w.m |
