| Code: | SPW-YD200-05A to SPW-YD460-05A |  |

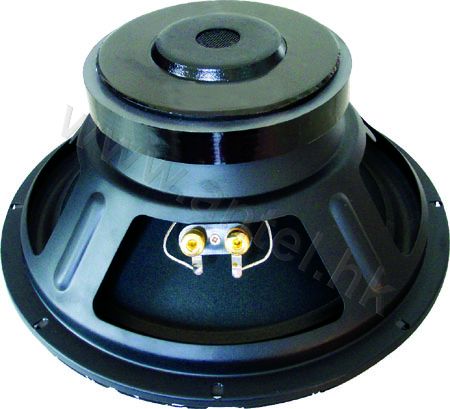

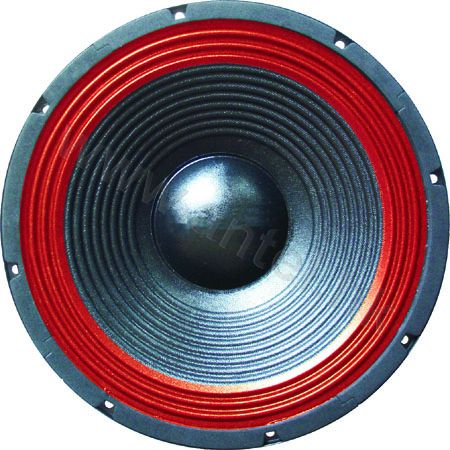

| Name: | woofer |
-05A.jpg) |
Specifications:
| SPW-YD200-05A to SPW-YD460-05A | Paper Cone With Cloth Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-YD200-05A | 8" | 113x60x20 (25oz) | 1.5" ASV | 150 | 4 or 8 ohm | 55-5kHz | 92 dB/w.m |
| SPW-YD250-05A | 10" | 120x60x20 (30oz) | 1.5" ASV | 200 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-YD300-05A | 12" | 140x70x20 (40oz) | 2" ASV | 250 | 4 or 8 ohm | 35-4kHz | 93 dB/w.m |
| SPW-YD385-05A | 15" | 170x80x20 (60oz) | 2" ASV | 380 | 4 or 8 ohm | 25-4kHz | 94 dB/w.m |
| SPW-YD460-05A | 18" | 200x110x20 (90oz) | 3" ASV | 480 | 4 or 8 ohm | 25-2kHz | 94 dB/w.m |
