| Code: | SPW-YD200-03A to SPW-YD460-03A |  |
| Name: | woofer |

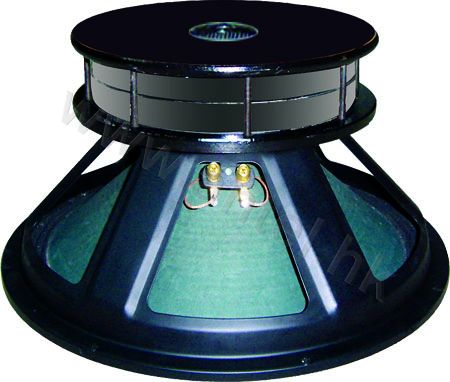

-03A.jpg) |
Specifications:
| SPW-YD200-03A to SPW-YD460-03A | Paper Cone With Cloth Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-YD200-03A | 8" | 100x45x18-2 (40oz) | 1.5" ASV | 250 | 4 or 8 ohm | 55-5kHz | 91 dB/w.m |
| SPW-YD250-03A | 10" | 113x60x20-2 (50oz) | 1.5" ASV | 300 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-YD300-03A | 12" | 126x60x20-2 (70oz) | 2" ASV | 400 | 4 or 8 ohm | 35-4kHz | 92 dB/w.m |
| SPW-YD385-03A | 15" | 156x70x20-2 (100oz) | 3" ASV | 500 | 4 or 8 ohm | 25-4kHz | 93 dB/w.m |
| SPW-YD460-03A | 18" | 170x80x20-2 (130oz) | 3.5" ASV | 600 | 4 or 8 ohm | 25-2kHz | 94 dB/w.m |
Email:

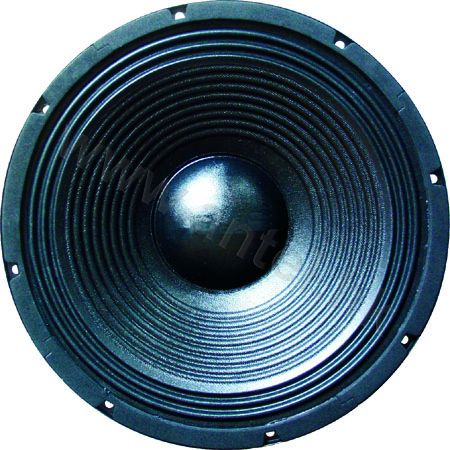

-03A pic2.jpg)
