| Code: | SPW-YD166-01C to SPW-YD385-01C |  |

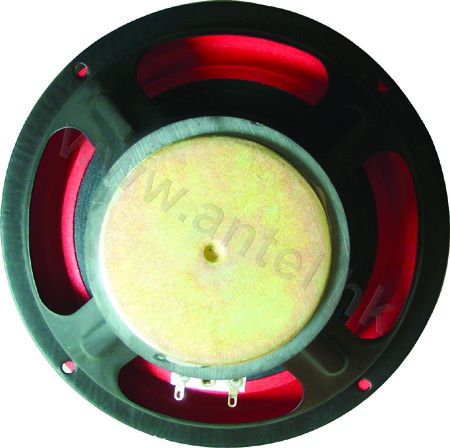

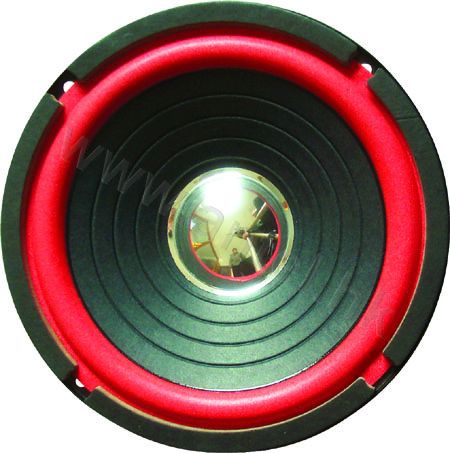

| Name: | woofer |
-01C.jpg) |
Specifications:
| SPW-YD166-01C to SPW-YD385-01C | Paper Cone With Foam Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-YD166-01C | 6" | 80x40x15 (10oz) | 0.75" ASV | 100 | 4 or 8 ohm | 60-8kHz | 89 dB/w.m |
| SPW-YD200-01C | 8" | 100x60x18 (18oz) | 1" ASV | 150 | 4 or 8 ohm | 55-5kHz | 90 dB/w.m |
| SPW-YD250-01C | 10" | 100x45x20 (20oz) | 1" ASV | 200 | 4 or 8 ohm | 40-5kHz | 90 dB/w.m |
| SPW-YD300-01C | 12" | 120x60x20 (30oz) | 1.5" ASV | 250 | 4 or 8 ohm | 35-4kHz | 91 dB/w.m |
| SPW-YD385-01C | 15" | 156x70x20 (50oz) | 2" ASV | 280 | 4 or 8 ohm | 25-4kHz | 93 dB/w.m |
