| Code: | SPW-EA166-01B to SPW-EA385-01B |  |

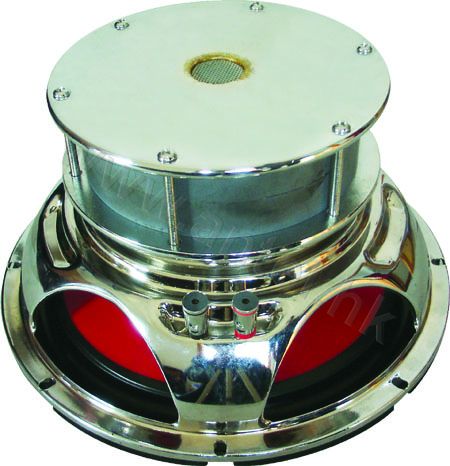

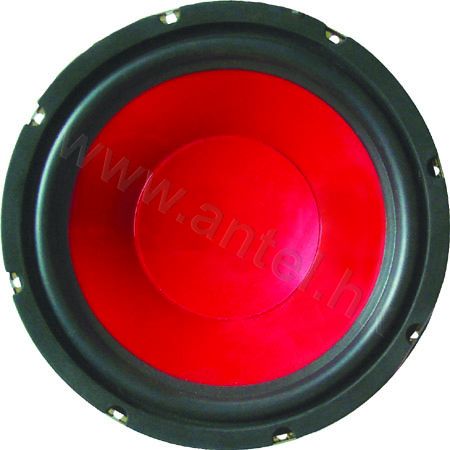

| Name: | woofer |
-01B.jpg) |
Specifications:
| SPW-EA166-01B to SPW-EA385-01B | CD Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-EA166-01B | 6" | 100x45x18-2(30oz) | 1" ASV | 100 | 4 or 8 ohm | 60-8kHz | 92 dB/w.m |
| SPW-EA200-01B | 8" | 100x45x18-2(40oz) | 1.5" ASV | 250 | 4 or 8 ohm | 55-5kHz | 91 dB/w.m |
| SPW-EA250-01B | 10" | 120x60x20-2(60oz) | 2" ASV | 320 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-EA300-01B | 12" | 140x60x20-2(80oz) | 2" ASV | 450 | 4 or 8 ohm | 35-4kHz | 93 dB/w.m |
| SPW-EA385-01B | 15" | 156x70x20-2(100oz) | 3" ASV | 600 | 4 or 8 ohm | 25-2kHz | 94 dB/w.m |
