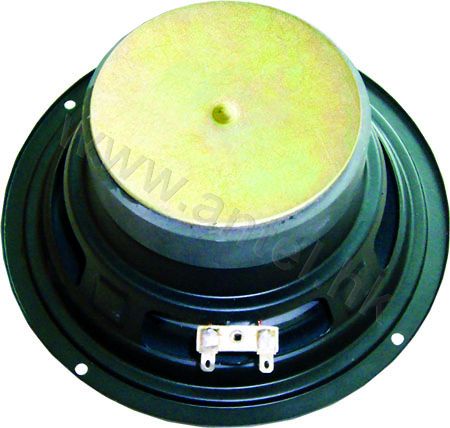

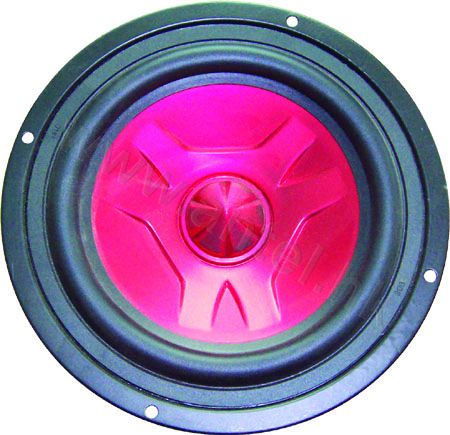

| Code: | SPW-DB166-21B to SPW-DB300-21B |  |
| Name: | woofer |
-21B.jpg) |
Specifications:
| SPW-DB166-21B to SPW-DB300-21B | Injection Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-DB166-21B | 6" | 100x60x18 (18oz) | 1" ASV | 80 | 4 or 8 ohm | 60-10kHz | 90 dB/w.m |
| SPW-DB200-21B | 8" | 113x60x20 (25oz) | 1" ASV | 100 | 4 or 8 ohm | 45-5kHz | 91 dB/w.m |
| SPW-DB250-21B | 10" | 120x60x20 (30oz) | 1.5" ASV | 200 | 4 or 8 ohm | 40-5kHz | 91 dB/w.m |
| SPW-DB300-21B | 12" | 140x60x20 (40oz) | 1.5" ASV | 250 | 4 or 8 ohm | 35-4kHz | 92 dB/w.m |
