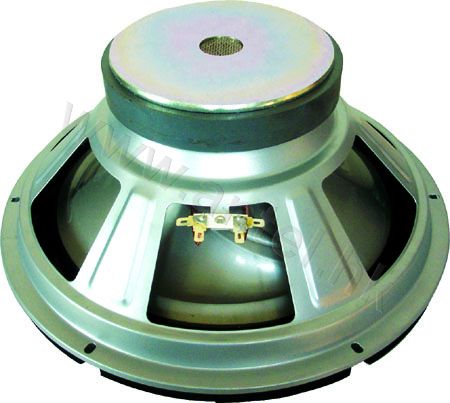

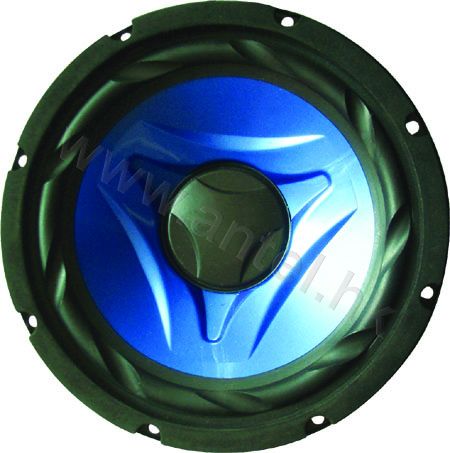

| Code: | SPW-DB200-19B to SPW-DB300-19B |  |
| Name: | woofer |
-19B.jpg) |
Specifications:
| SPW-DB200-19B to SPW-DB300-19B | Injection Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-DB200-19B | 8" | 113x60x20 (25oz) | 1.5" ASV | 150 | 4 or 8 ohm | 50-5kHz | 91 dB/w.m |
| SPW-DB250-19B | 10" | 126x70x20 (28oz) | 1.5" ASV | 200 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-DB300-19B | 12" | 140x60x20 (40oz) | 2" ASV | 300 | 4 or 8 ohm | 35-4kHz | 93 dB/w.m |
Email:
-19B pic2.jpg)
