| Code: | SPW-Z103-02 to SPW-Z170-02 |  |

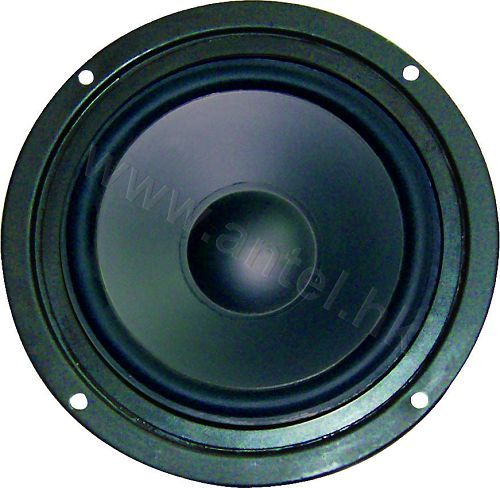

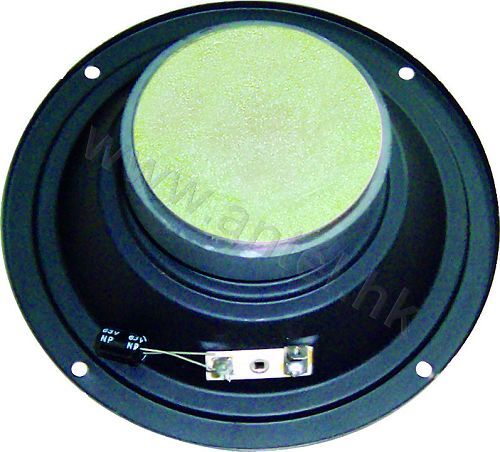

| Name: | woofer |
-02.jpg) |
Specifications:
| SPW-Z103-02 to SPW-Z170-02 | PP Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-Z103-02 | 4" | 60x32x10 (3.7oz) | 0.5" ASV | 50 | 4 or 8 ohm | 800-10kHz | 89 dB/w.m |
| SPW-Z130-02 | 5" | 70x32x10 (5.3oz) | 0.75" ASV | 60 | 4 or 8 ohm | 600-12kHz | 89 dB/w.m |
| SPW-Z160-02 | 6" | 80x40x12 (8oz) | 1" ASV | 85 | 4 or 8 ohm | 600-12kHz | 90 dB/w.m |
| SPW-Z170-02 | 6.5" | 100x40x15 (15oz) | 1" ASV | 100 | 4 or 8 ohm | 500-10kHz | 91 dB/w.m |
Email:
-02 pic2.jpg)
