| Code: | SPW-Z103-01 to SPW-Z170-01 |  |

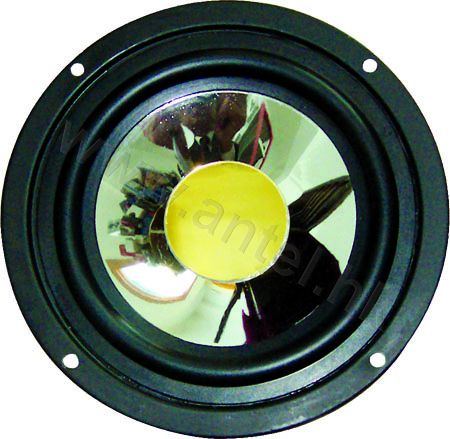

| Name: | woofer |
-01.jpg) |
Specifications:
| SPW-Z103-01 to SPW-Z170-01 | CD Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-Z103-01 | 4" | 70x32x10 (5.4oz) | 0.5" ASV | 40 | 4 or 8 ohm | 800-10kHz | 89 dB/w.m |
| SPW-Z130-01 | 5" | 80x40x12 (8oz) | 0.75" ASV | 65 | 4 or 8 ohm | 600-12kHz | 90 dB/w.m |
| SPW-Z160-01 | 6" | 80x40x15 (10oz) | 1" ASV | 80 | 4 or 8 ohm | 600-12kHz | 90 dB/w.m |
| SPW-Z170-01 | 6.5" | 100x45x18 (20oz) | 1" ASV | 150 | 4 or 8 ohm | 500-12kHz | 91 dB/w.m |
