| Code: | DV103 |  |
| Name: | Color divider, 4CH, w/remote control |
 |

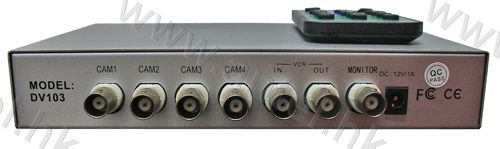

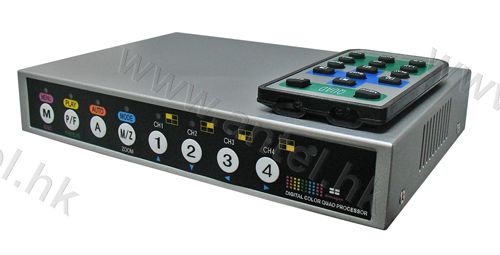

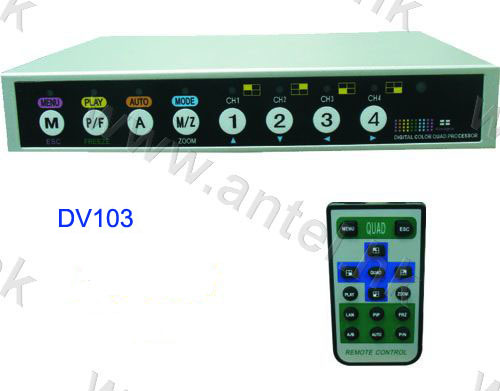

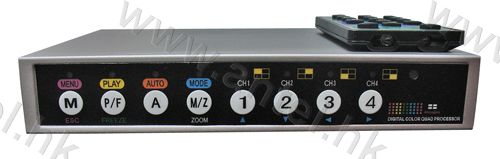

DV103, color divider, 4CH, PAL system, remote control; Power supply: DC12V 1A;
Features:
| ●These device installed latest chips,built up a stable & high definition processor. |
| ●4-image full real time display, motion detect alarm, video lost alarm and image freezing and automatic channel switch. |
| ●Support multiple image display, PAL/NTSC compatible. |
| ●Single image magnification and local image magnification. |
Specifications:
| MODEL | DV103 |
| SIGNAL FORMAT | NTSC/PAL |
| REFRESH RATE | PAL:25 FRAMES/SEC;NTSC:30 FRAMES/SEC |
| SYSTEM | PAL:720*576;NTSC:720*480 |
| VIDEO INPUT LEVEL | BNC:1Vp-p/75ohm |
| VIDEO OUTPUT LEVEL | BNC:1Vp-p/75ohm |
| VCR IN/OUT | BNC:1Vp-p/75ohm |
| INPUT FOR CAMERA | 4-BNC |
| IREMOTE CONTROL | OPTIONAL |
| POWER SUPPLY | DC12V 1A |
| DIMENSIONS(mm) | 190*130*32 |
| WEIGHT(g) | 600 |
