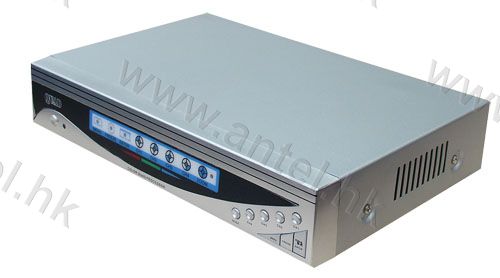

DV203, color divider, 8CH, PAL system, remote control; Power supply: DC12V 1A;
Features:
●These device installed latest chips,built up a stable & high definition processor. |
●8-image full real time display, motion detect alarm, video lost alarm and image freezing and automatic channel switch. |
●Support multiple image display, PAL/NTSC compatible. |
●Single image magnification and local image magnification. |
Specification:
MODEL | DV203 |
SIGNAL FORMAT | NTSC/PAL |
REFRESH RATE | PAL:25 FRAMES/SEC;NTSC:30 FRAMES/SEC |
SYSTEM | PAL:720*576;NTSC:720*480 |
VIDEO INPUT LEVEL | BNC:1Vp-p/75ohm |
VIDEO OUTPUT LEVEL | BNC:1Vp-p/75ohm |
VCR IN/OUT | BNC:1Vp-p/75ohm |

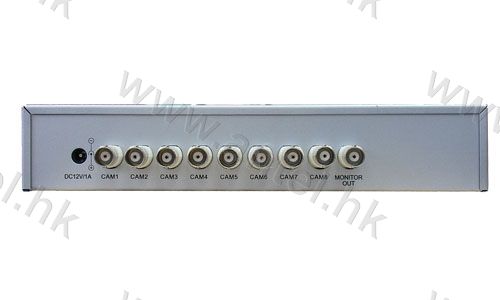

INPUT FOR CAMERA | 8-BNC |

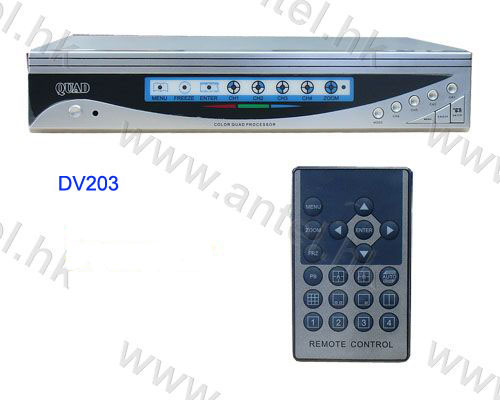

IREMOTE CONTROL | OPTIONAL |
POWER SUPPLY | DC12V 1A |
DIMENSIONS(mm) | 235*150*42 |
WEIGHT(g) | 630 |
