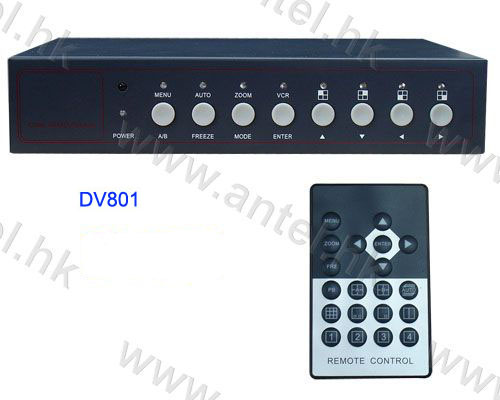

| Code: | DV801 |  |
| Name: | Color divider, 8CH, w/remote control |
 |
DV801, color divider, 8CH, PAL system, remote control; Power supply: DC12V 1A;
Features:
| ●These device installed latest chips,built up a stable & high definition processor. |
| ●8-image full real time display, motion detect alarm, video lost alarm and image freezing and automatic channel switch. |
| ●Support multiple image display, PAL/NTSC compatible. |
| ●Single image magnification and local image magnification. |
Specification:
MODEL
DV801
SIGNAL FORMAT
NTSC/PAL
REFRESH RATE
PAL:25 FRAMES/SEC;NTSC:30 FRAMES/SEC
SYSTEM
PAL:720*576;NTSC:720*480
VIDEO INPUT LEVEL
BNC:1Vp-p/75ohm
VIDEO OUTPUT LEVEL
BNC:1Vp-p/75ohm
VCR IN/OUT
BNC:1Vp-p/75ohm
INPUT FOR CAMERA
8-BNC
IREMOTE CONTROL
OPTIONAL
POWER SUPPLY
DC12V 1A
DIMENSIONS(mm)
210*150*42
WEIGHT(g)
700
