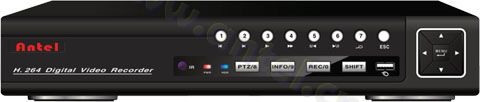

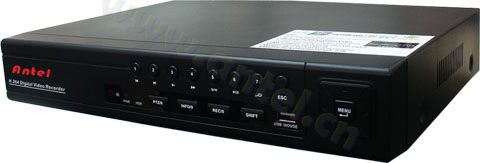

| Code: | DVR-8516 |  |
| Name: | HD-NETWORK DVR,H.264,VGA |
 |
Features:
| * H.264 Main Profile Compression Algorithm Ideal |
| * Supports 4/8/16-CH Real Time Recording / Playback Simultaneously |
| * Supprts VGA Output/HDMI option |
| * Simple GUI Menu Operation with Mouse right click Function Menu |
| * Supports iPhone 4/iPad 2,Blackberry,Android,Symbian and Windows mobile software compatibility |
| * Supports Windows XP,Vista,Womdpws 7 and OS X 10.6/10.7 system compatibility |
| * Supports Internet Explorer,Google Chrome ,Mozilla Firefox and Safari internet browser compatibility |
| * Multi-language menus option up to 28 kinds of Language |
| * Supports TCP/IP,DHCP,DDNS,PPPoE,UPNP,NTP,SMTP,FTP,RTSP,ARSP etc…network protocol |
| * Supports 1 SATA HDD up to 2TB each,2 USB 2.0 port for Mouse and Backup operation convenience |
| * Supports the Sound System for Protection Circuit, unique Triple Watchdog function,Low power |
| * Consumption,so that ensure the equipment never be hang up |
Specifications:
| System | Model | DVR-8516 |
| Main Processor | High performance embedded microprocessor Hi3515 | |
| Operating System | Embedded LINUX | |
| System Resources | Pentaplex function:live,recording,playback,backup & remote access | |
| User Interface | GUI,on-screen menu tips | |
| Video | Video System | PAL/NTSC |
| Video Compression | H.264 main profile | |
| Video Recording | CIF/QCIF | |
| Encode capacity | 400/480fps（CIF） | |
| Motion Detection | Zones:396(22*18)detection zones,Sensitivity:1~6(6 is highest) | |
| Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP | ||
| Audio | Audio Compression | G711A |
| Bidrectional Talk | Support | |
| Record & Playback | Recording Mode | Manual/Alarm/Video Detection/Continuous |
| Playback | 1~16channels playback simultaneously | |
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | |
| Storage & Backup | Space Occupation | Audio 28.8MB/H ;Video 25~450 MB/H |
| Record Storage | Local Hard disk and Network | |
| Backup Mode | Network download/Flash stick/movable HDD/SATA HDD | |

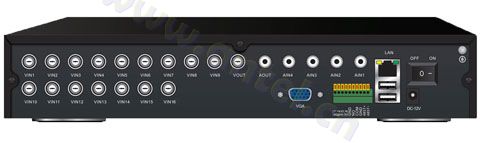

| Interface | Video Input | 16CH |
| Video Output | 1channel TV output BNC; 1 VGA output(optional) | |
| Audio Input | 4CH | |
| Audio Output | 1CH | |
| Alarm Input | 4CH | |
| Alarm Output | 1CH | |
| Net Interface | RJ-45 (10M/100M) | |
| PTZ Control | 1 RS485 | |
| USB Interface | 2 x USB2.0 | |
| Hard Disk | 2 SATA ports(Max 4096G) | |
| Environmental | Power Supply | 12V/3A |
| Power Consumption | <10W(not include Hard disk) | |
| Working Temperature | 0°C~+55°C | |
| Working Humidity | 10%~90% | |
| Dimension(W*L*H) | 245* 330* 55mm | |
| Weight | 1.7KG |
