| Code: | DVR-8508 |  |
| Name: | HD-NETWORK DVR,H.264,VGA |
 |
Features:
| * H.264 Main Profile Compression Algorithm Ideal |
| * Supports 4/8/16-CH Real Time Recording / Playback Simultaneously |
| * Supprts VGA Output/HDMI option |
| * Simple GUI Menu Operation with Mouse right click Function Menu |
| * Supports iPhone 4/iPad 2,Blackberry,Android,Symbian and Windows mobile software compatibility |
| * Supports Windows XP,Vista,Womdpws 7 and OS X 10.6/10.7 system compatibility |
| * Supports Internet Explorer,Google Chrome ,Mozilla Firefox and Safari internet browser compatibility |
| * Multi-language menus option up to 28 kinds of Language |
| * Supports TCP/IP,DHCP,DDNS,PPPoE,UPNP,NTP,SMTP,FTP,RTSP,ARSP etc…network protocol |
| * Supports 1 SATA HDD up to 2TB each,2 USB 2.0 port for Mouse and Backup operation convenience |
| * Supports the Sound System for Protection Circuit, unique Triple Watchdog function,Low power |
| * Consumption,so that ensure the equipment never be hang up |
Specifications:
| Model | DVR-8508 | ||
| System | Main Processor | High performance embedded microprocessor Hi3515 | |
| Operating System | Embedded LINUX | ||
| System Resources | Pentaplex function:live,recording,playback,backup & remote access | ||
| User Interface | GUI,on-screen menu tips | ||
| Video | Video System | PAL/NTSC | |
| Video Compression | H.264 | ||
| Video Recording | CIF/QCIF | ||
| Encode capacity | 50/60fps(D1)+200/240fps(CIF) | ||
| Motion Detection | Zones:396(22*18)detection zones,Sensitivity:1~6(6 is highest) | ||
| Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP | |||
| Audio | Audio Compression | G711A | |
| Bidrectional Talk | Support | ||
| Record & Playback | Recording Mode | Manual/Alarm/Video Detection/Continuous | |
| Playback | 1~8Channels playback simultaneously | ||
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | ||
| Storage &Backup | Space Occupation | Audio 28.8MB/H ;Video 25~450 MB/H | |
| Record Storage | Local Hard disk and Network | ||
| Backup Mode | Network download/Flash stick/movable HDD/SATA HDD | ||

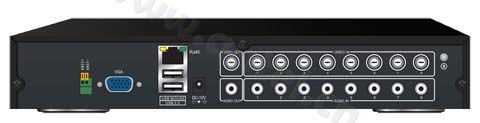

| Interface | Video Input | 8CH | |
| Video Output | 1Channel TV output BNC; 1 VGA output | ||
| Audio Input | 8*RCA | ||
| Audio Output | 1*RCA | ||
| Alarm Input | No | ||
| Alarm Output | No | ||
| Net Interface | RJ45 (10M/100M) | ||
| PTZ Control | 1 RS485 | ||
| USB Interface | 2 USB2.0 | ||
| Hard Disk | 1 SATA ports(Max 2048G) | ||
| Environmental | Power Supply | 12V/2A | |
| Power Consumption | <10W(not include Hard disk) | ||
| Working Temperature | 0℃~+55℃ | ||
| Working Humidity | 10%~90% | ||
| Dimension(W*L*H) | 245* 330* 55mm | ||
| Weight | 1.5KG | ||
