| Code: | SPD-100 |  |
| Name: | 7 |
 |
Features:
| ● Horizontal 360°unlimited rotation |
| ● Double shell protection, continuous operating temperature below 50 ℃ |
| ● High quality components and motor, rotation speed according to the zoom multiples of lens automatic adjustment |
| ● Advanced zoom dimming synchronization mode and intelligent control of infrared light brightness |
| ● Infrared compartment isolation system |
| ● Circuit design of constant current and voltage, make the infrared operating up to 20000 hours |
| ● Infrared array effective distance of 150 meters |
| ● Optional temperature control system, adapt to high and low temperature environment operating |
| ● High quality step motor and belt, make it more reliable |
| ● Lightning strike protection device. |
| ● Built-in full screen OSD menu |
Specifications:
| Model | SPD-100 |
| Image sensor | 1/3″SONY CCD |
| TV system | PAL/NTSC |
| Horizontal resolution | 700TVL |
| Total pixels | PAL: 976(H)×582(V) NTSC:976(H)×494(V) |
| Min illumination | Color to B/W，color0.01Lux，B/W 0.001Lux |
| S/N ratio | ≥60dB |
| Backlight compensation | On/off |
| White balance | Audo |
| Electronic shutter | PAL:1/50～1/10000s NTSC:1/60～1/12000s |
| Focus lenth | 4.8mm～105.6mm |
| Optical focus | 27X |
| Focus | manual/Auto，take high-performance DSP to realize complete digital and ultra-high speed focus function |
| Presets | 256 |
| Patrol track | 4groups,each can record 200 actions |
| Cruise track | 16 presets can join Tour, can setting the presets’ residence time |
| Other scan | Support Horizontal scan, deuce area scan, random scanning |
| Rotation Range | Horizontal 360°unlimited rotation, Vertical 180°, auto reversal |
| Rotation speed | Horizontal&Vertical Min 0.01° Max 300°/s. (according to the zoom multiples of lens automatic adjustment) |
| Communications | PELCO D and PELCO P |
| Menu function | Full screen menu |
| Temperature Control | Optional |
| Power supply | DC12V/4A |

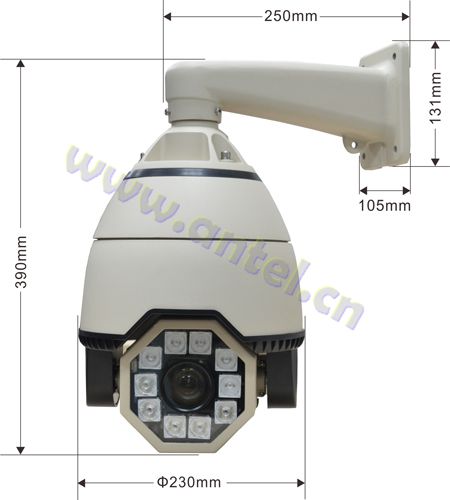

| Dimension | 7inch |
| Temperature | -15℃ ～ +65℃(select temperature control accessories)， ﹤95%RH |
| Material | Metal casting aluminum shell,waterproof IP66 |
