| Code: | SPD-51D7-10X |  |

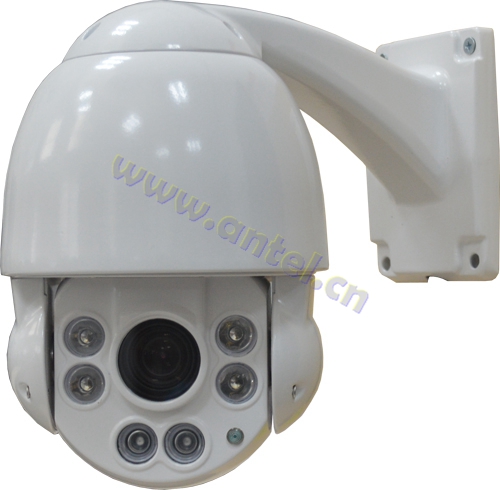

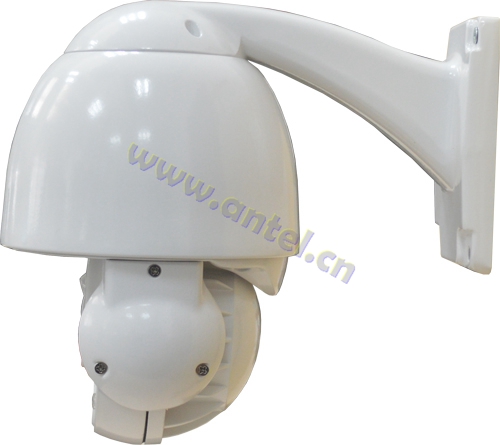

| Name: | 4.5" outdoor 60m IR middle speed mini dome camera CCD 700TVL 30X auto IR lens f=5.13~46.3mm |
 |
Specifications:
| Camera | |
| Sensor | 1/3" SONY CCD |
| Effective pixels | 976(H) X 582 (V) |
| Total pixels | 700TVL |
| Lens | 10X optical zoom |
| Iris | f=5.13~46.3mm |
| View of Angle | H：51.8°（W）～5.86°（T） V：39.1°（W）～4.4°（T） |
| Min. illumination | Color: 0.1 Lux \ B/W: 0.01 Lux |
| D/N | IR-CUT |
| S/N Ratio | ≥50dB |
| IR parameters | |
| Auto Control IR LED | PWM |
| LEDs | 6pcs*∮16 |
| IR distance | Up to 60 meters |
| Support ambient light detection | IR illumination on 1-15 grades selectable |
| Dome | |
| Pan range | 360° continuous rotation |
| Manual Tilt range | 93° |
| Manual Pan speed | 60°/S |
| Manual Tilt speed | 45°/S |
| Preset Points | 220 |
| Groups Cruise | 3 groups*16 points |
| Patrol track | 4 groups, each can record 3 minutes |
| Operating temperature | Outdoor: -40°~ +60° |
| Operation menu | English |
| Pan and Tilt position display | Support |
| Humidity | ≤95% Non Condensing |
| Power supply | DC12V/3A |
| Consumption | ≤15W |
| Video interface output | CVI |
| Compatiable | PELCO D &PELCO P |
| Communication mode | RS485 (+/-) / Coaxial Cable |
| Connection | Coaxial Cable |
| Related validation | IP66 |
| Dimensions | 21.5*13.7*19.8cm |
| Weight | 1.64.kg |
