| Code: | ANT-672D-49 |  |

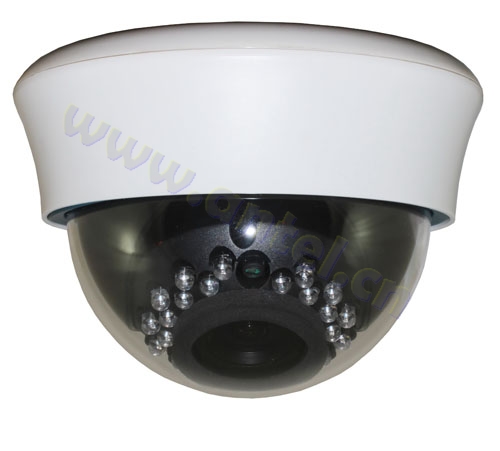

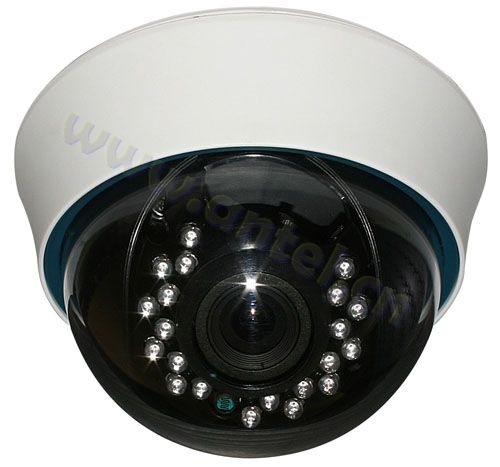

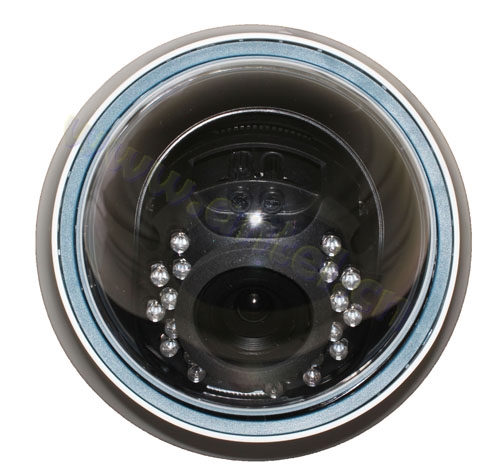

| Name: | H.R.dome camera 1/3 |
 |
 Functions |
| 4.5'' IR Plastic Dome Camera |
| 1/3" Sony CCD |
| H.Resolution: 650 TVL |
| OSD Menu Control |
| BLC/AWB Function |
| IR Led: 21pcs*Φ5mm |
| IR Range: 18m |
| Manual focal lens 4~9mm |
| Specifications: |
||
| Image Sensor: | 1/3" Sony CCD | |
| Horizontal Resolution: | 650TV line | |
| System: | PAL:976(H)×582(V) | |
| NTSC:976(H)×494(V) | ||
| Mini Illumination: | 0.01Lux (F=1.2) | |
| OSD: | OSD | |
| WDR: | D-WDR | |
| DNR: | 2D-DNR | |
| White Balance: | Auto/ATW/Manual | |
| BLC: | ON/OFF | |
| AGC: | Auto/Manual/Off | |
| Electronics Shutter: | PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec | |
| IR Led: | Ф5mm 21pcs | |
| Distance: | 20 meter | |
| Lens: | Standard 4~9mm manual focus | |
| S/N Ratio: | >58dB | |
| Water Proof: | IP66 | |
| Operation Temperature: | -10℃~ +60℃ (Relative Humidity 95% max.) | |
| Storage Temperature: | -20℃~ + 50℃ (Relative Humidity 95% max.) | |
| Video Output: | BNC 1.0VP-P, 75Ω | |
| Power Supply: | DC12V±5% | |
| Demension: | Ф127*91*Ф110mm | |
| Weight: | 300g | |
