| Code: | ANT-636 |  |
| Name: | 2.5 |
 |
Features:

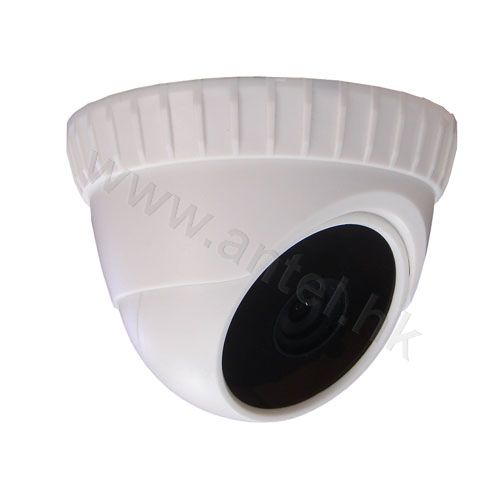

| 1. Latest designed 2.5'' plastic dome camera |
| 2. High resolution for clearer and sharper images |
| 3. IR effecttive range reaches up to 15m |
| 4. High sensitivity in the dark environment,0.1 Lux/F2.0,0lux (IR ON) |
| 5. Day & night features for 24-hour surveillance |
| 6. Excellent image quality |
Specifications:

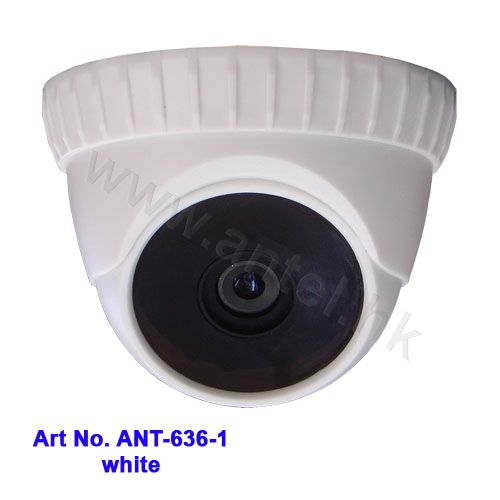

| Model | ANT-636B-1-3.6 (white) | ANT-636Q-1-3.6 (white) |

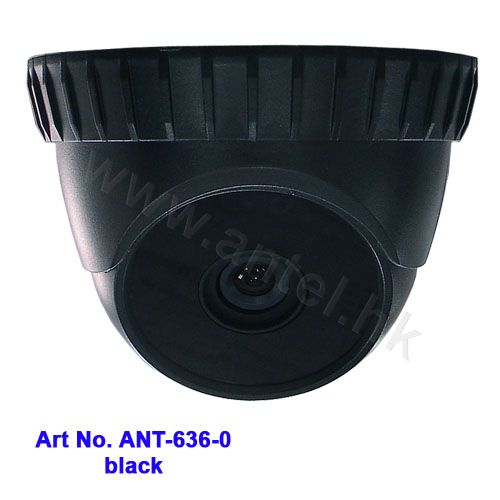

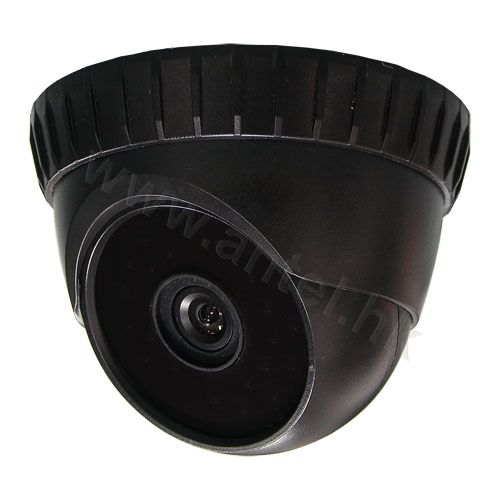

| ANT-636B-0-3.6 (black) | ANT-636Q-0-3.6 (black) | |
| Image Sensor | 1/3" Sharp CCD | 1/3" Sharp CCD |
| Horizontal Resolution | 420TV Line | 520TV Line |
| System | PAL:512(H)×582(V) | PAL:753(H)×582(V) |
| NTSC:512(H)×492(V) | NTSC:771(H)×492(V) | |
| Minimum Illumination | 0.05Lux/F2.0, 0Lux (IR ON) | 0.1Lux/F2.0, 0Lux (IR ON) |
| IR Led | 21 pieces | |
| IR Effective Range | Up to 15 meters | |
| S/N Ratio | More than 48dB(AGC off) | |
| Electronic Shutter | 1/60(1/50) to 1/100,000 sec | |
| Lens (Standard) | f=3.6mm / F2.0 | |
| Lens Angle | 92.6° | |
| Iris Mode | AES | |
| Whith Balance | ATW | |
| Video Output | 1.0Vp-p compsite,75Ω | |
| Power Supply (±10%) | DC12V | |
| Current Consumption (±10%) | 70mA (IR OFF),220mA (IR ON) | |
| Dimensions | (Φ×H)=93*70mm | |
| Weight | 130g | |
