| Code: | SNC-FL-120W-111X-1602 |  |
| Name: | LED Flood Light |
 |
Model No. SNC-FL-120W-111X-1602, and "X" stands for:
| 1-Short Bracket |  |
 |
 |
| 2-Long Bracket |  |
 |
 |
Advantages:
| 1) | UL cUL DLC certificate |
| 2) | PHILIPS Chip, High CRI |
| 3) | Mean Well IP65 driver, Input voltage 200-480VAC |
| 4) | 150*75° lens angle |
| 5) | No UV or IR in the beam |
| 6) | Easy to install and operate |
| 7) | Energy saving, Long lifespan |
| 8) | Light is soft and uniform, Safe to eyes |
| 9) | Instant start, NO flickering, NO humming |
| 10) | Green and eco-friendly without mercury. |
Applications: Architectural Flood and Spot Luminaries
( Different brackets for installation to help you get the best viewing angle)
Product Specifications:
| Product name | LED Flood Light |
| Part No | SNC-FL-120W-111X-1602 |
| Dimension | 330*365*220mm---SNC-FL-120W-1111-1602 |
| 330*365*270mm---SNC-FL-120W-1112-1602 |
Technical Characteristic:
| Color temperature | 4000K | 5000K | 5700K |
| CRI | >70 | ||
| Lumen | 15000-16000LM | ||
| Input Power | 120W | ||
| Viewing Angle | 150*75° TYPE Ⅱ | ||
| Input Voltage | 200-480VAC 50/60Hz | ||
| Driver model | HVG-150-48A ( Mean Well Driver ) | ||
| PFC | >0.9 | ||
| Waterproof Rating | IP65 | ||
Materials:
| LED Brand | PHILIPS LUMILEDS |
| LED Type | LUXEON 3030 2D（1.5W） |
| LED QTY | 140 PCS |
| Housing | Aluminum |
| Housing color | Silver |
| LED Module number | 2 |
Others:
| Operating Temperature | -20℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -30℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Outdoor / Indoor |
| Safety Certification | UL、cUL、DLC |
| Warranty Time | 5 Years |

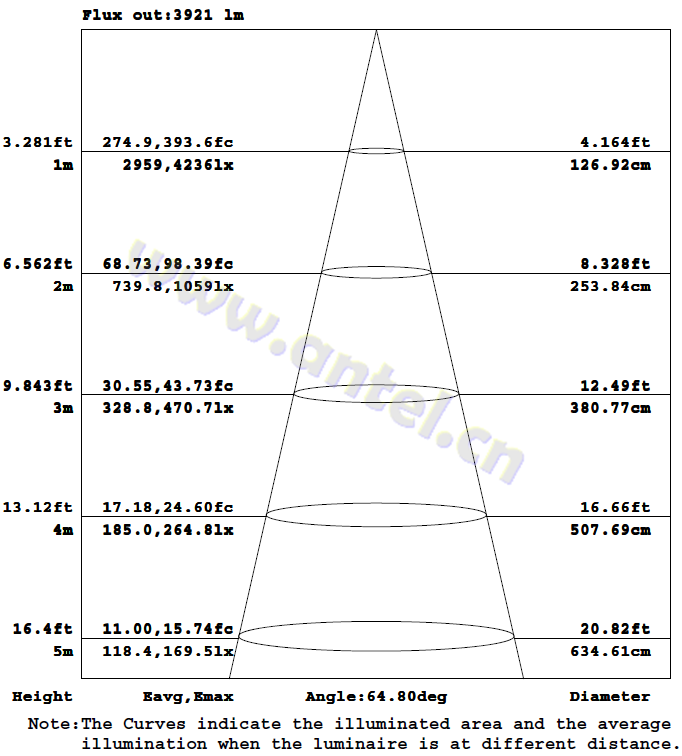

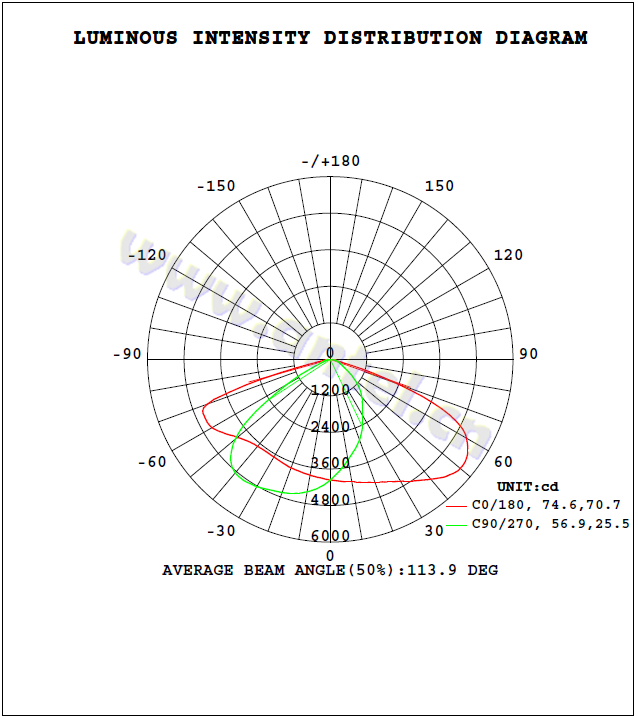

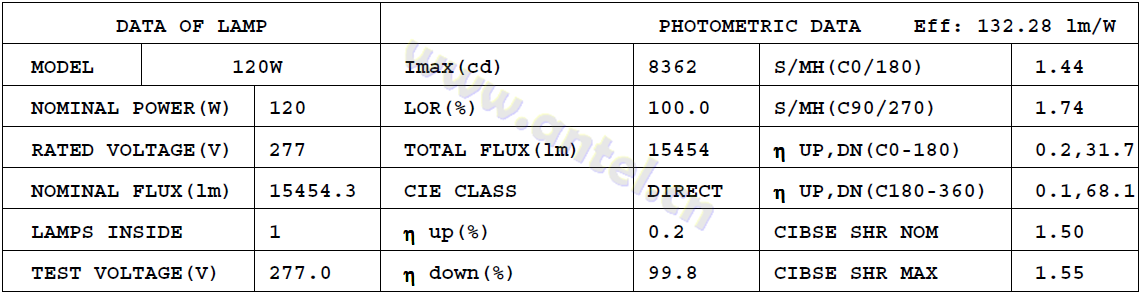

Light Distribution Testing Parameters:
Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| Outer box | 380 x 360 x 180mm | 1pc | 8.5kgs | 7.5kgs |
Notice for user:
| 1) | Please turn off power before install or change assembly parts. |
| 2) | The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated. |
| 3) | No-professionals, must not install and disassemble the lamps. |
Trouble Shootings:
| Troubles | Check points |
| Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
| Out of working | Please check the connection |
