Model No. SNC-FL-120W-111X-1601, and "X" stands for:
1-Short Bracket | |||
2-Long Bracket |
Advantages:
1) | UL cUL DLC certificate |
2) | PHILIPS Chip, High CRI |
3) | Mean Well IP65 driver, Input voltage 100-277VAC |
4) | 150*75° lens angle |
5) | No UV or IR in the beam |
6) | Easy to install and operate |
7) | Energy saving, Long lifespan |
8) | Light is soft and uniform, Safe to eyes |
9) | Instant start, NO flickering, NO humming |
10) | Green and eco-friendly without mercury. |
Applications: Architectural Flood and Spot Luminaries

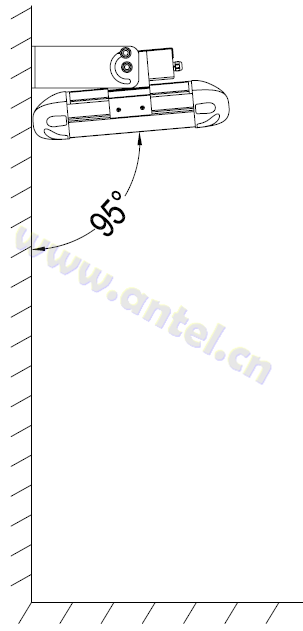

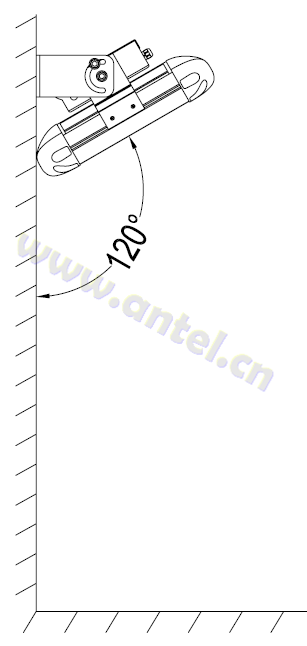

( Different brackets for installation to help you get the best viewing angle)
Product Specifications:

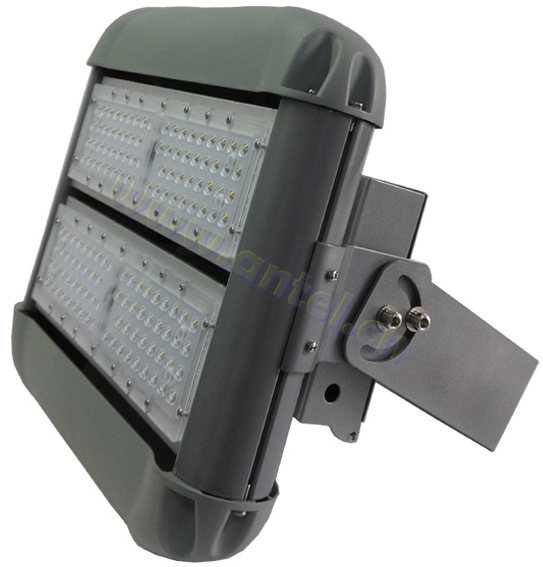

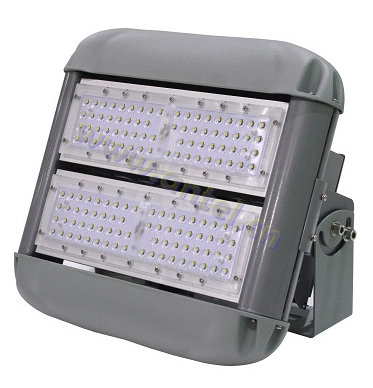

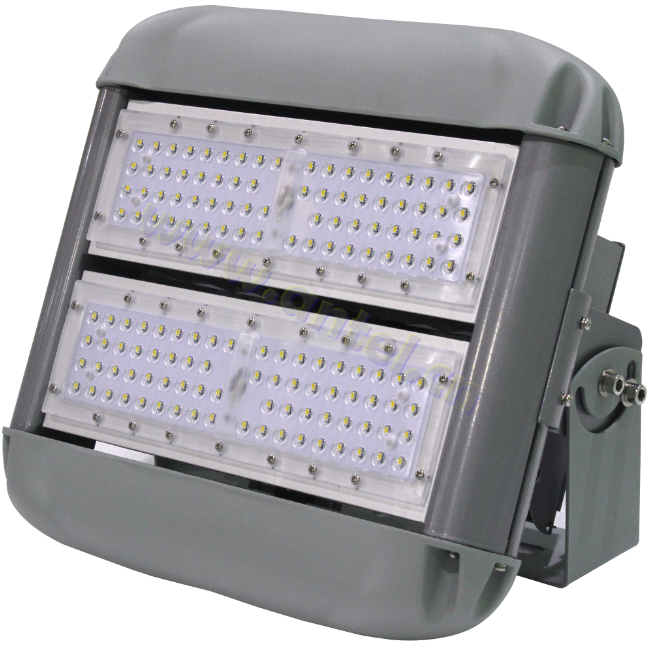

Product name | LED Flood Light |
Part No | SNC-FL-120W-111X-1601 |

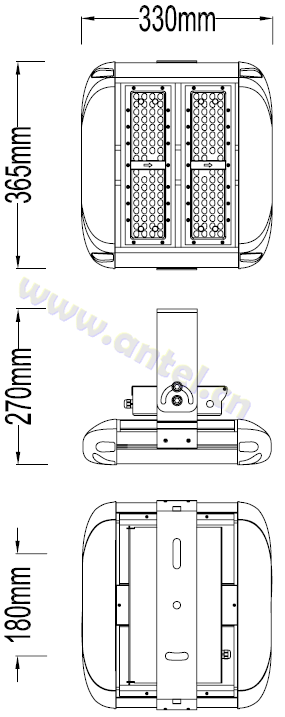

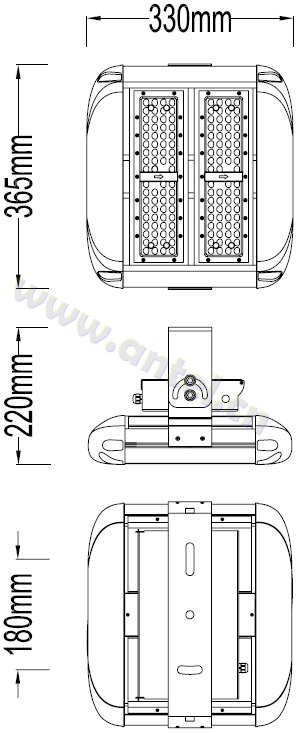

Dimension | 330*365*220mm---SNC-FL-120W-1111-1601 |
330*365*270mm---SNC-FL-120W-1112-1601 |
Technical Characteristic:
Color temperature | 4000K | 5000K | 5700K |
CRI | >70 | ||
Lumen | 15000-16000LM | ||
Input Power | 120W | ||
Viewing Angle | 150*75° TYPE Ⅱ | ||
Input Voltage | 100-277VAC 50/60Hz | ||
Driver model | HLG-120H-48A ( Mean Well Driver ) | ||
PFC | >0.9 | ||
Waterproof Rating | IP65 |
Materials:
LED Brand | PHILIPS LUMILEDS |
LED Type | LUXEON 3030 2D(1.5W) |
LED QTY | 140 PCS |
Housing | Aluminum |
Housing color | Silver |
LED Module number | 2 |
Others:
Operating Temperature | -20℃ TO 45℃ |
Operating Humidity | 20%-90% RH |
Storage Temperature | -30℃ TO 80℃ |
Storage Humidity | 10%-95% |
Application | Outdoor / Indoor |
Safety Certification | UL、cUL、DLC |
Warranty Time | 5 Years |

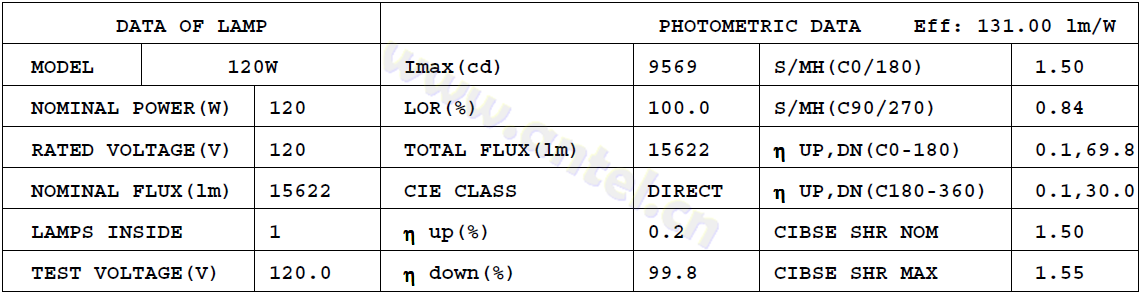

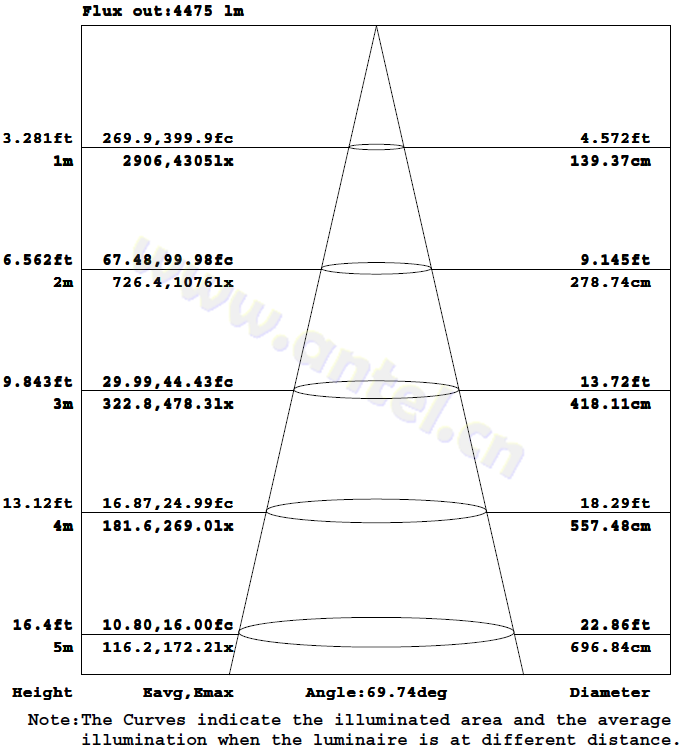

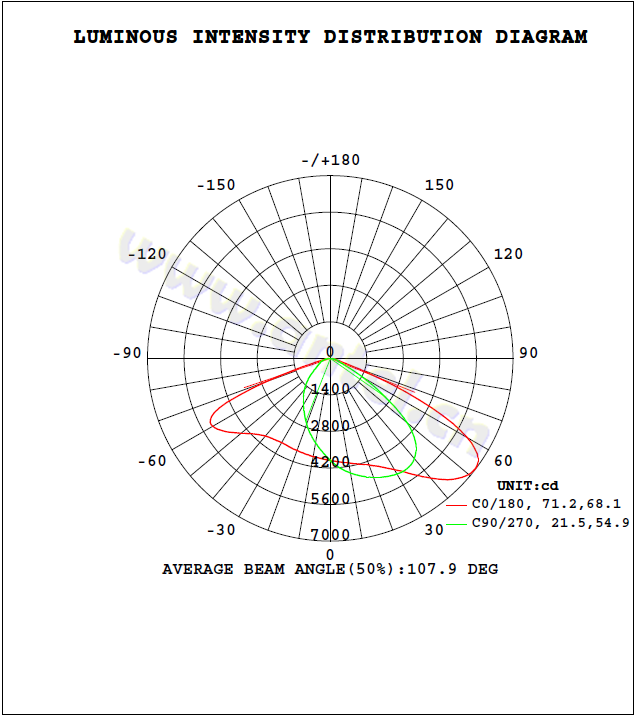

Light Distribution Testing Parameters:
Package:
Size | Qty/ctn | GW/ctn | NW/ctn | |
Outer box | 380 x 360 x 180mm | 1pc | 8.2kgs | 7.3kgs |
Notice for user:
1) | Please turn off power before install or change assembly parts. |
2) | The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated. |
3) | No-professionals, must not install and disassemble the lamps. |
Trouble Shootings:
Troubles | Check points |
Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
Out of working | Please check the connection |
