| Model |

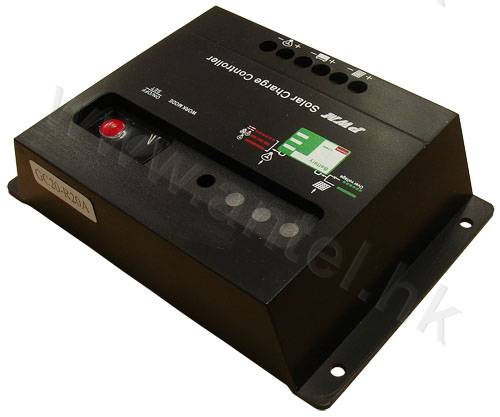

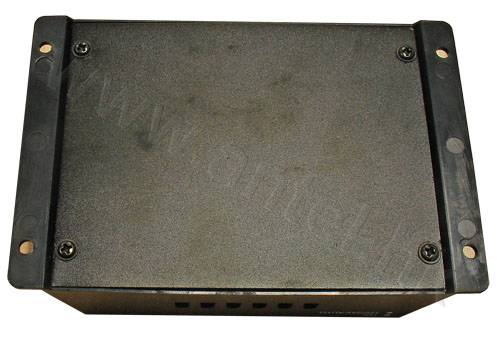

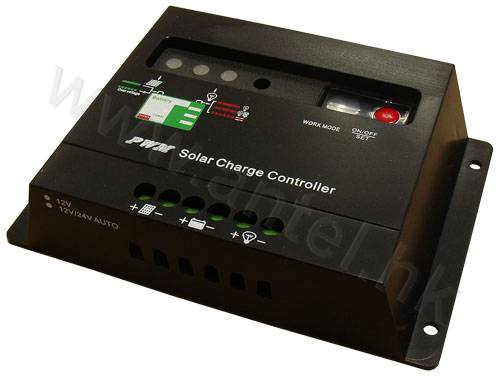

GC20-R20A |
| Rated Voltage |
DC 12V/24V Auto |
| Max Charging Current |
20A |
| Max Discharging Current |
20A |
| Over Charge Protection |
14.6V |
| Over Discharge Protection |
11±0.2V |
| Control Mode |
Charge:PWM pulse regulating |
| Operation Temperature |
-35℃~+65℃ |
| Dimension(L*W*H) |
95*141*32mm |
| Weight |
188g |
| Overload and Shortcut Protection |
1.25 times of rated current -30s;1.5times of rated current-5s overload protection;>=3times of rated current-shortcut protection |
| Protection Circuit |
Over charge,,over discharge,shortcut,overload protection |
All protections are no harmful to any part,fuse not blew.Fuse is the final protection. |
| Solar battery,acid battery wrong connection protection |
