| SP924 |
|
| DUAL 12 INCH LINE ARRAY SYSTEM |
|
| |
|
|
| FEATURES |
|
| ★ |
Line Source Former Technology |
| ★ |
High power maximum SPL 134dB continuous,140dB peak(single unit) |
| ★ |
Wide bandwidth 60Hz-16kHz 3dB (single unit) |
| ★ |
True 90°(-6dB) horizontal mid and HF pattern control |
| ★ |
Fast integral rigging system with variable splay angles from 0°to 10°, 0.5°step |
| |
|
|
| APPLICATIONS |
|
| ★ |
Live sound open-air venues, |
| arenas, |
| concert halls |
| ★ |
Fixed installations, |
| multi-purpose auditoria, |
| sports arenas |
| |
|
|
| SPECIFICATIONS |
|
| |
LINE ARRAY ELEMENT |
| Frequency Response (3 dB) |
60Hz-16kHz |
| Frequency Range (-10 dB) |
48Hz-18kHz |
| Horizontal Dispersion (-6 dB) |
90°. nominal (250Hz-16kHz) |
| Vertical Dispersion (-6 dB) |
Varies with array size and configuration |
| Maximum Peak Output |
140 dB |
| TRANSDUCER SECTIONS |
| Low Frequency |
12" Component 300 mm (12 in.) dia.,75 mm (3 in.) voice coil,Neodymium cone driver |
| Bandpass Nominal Impedance |
8 ohm each driver (each LF woofer individually wired) |
| Input Power Rated(AES) |
450W (1800W peak) 2 hours |
| Bandpass Sensitivity |
99 dB,1W/1m (3.3 ft) |
| Mid Frequency |
4 x 6M8N 165 mm (6.5 in.) with 45 mm dia. voice coil,Neodymium cone driver |
| Bandpass Nominal Impedance |
8 ohm (drivers wired series parallel) |
| Input Power Rated |
480W (1920W peak) 2 hours |
| Bandpass Sensitivity |
98 dB, 1W/1m (3.3 ft) |
| High Frequency |
3"Driver 7.5 mm(3 in.) Titanium diaphragm,36mm(1.4 in.) throat diameter Neodymium drivers |
| Bandpass Nominal Impedance |
16 ohm (drivers wired in series) |
| Input Power Rated |
320W peak |
| Bandpass Sensitivity |
110 dB, 1W/1m (3.3 ft) |
| ENCLOSURE |
| Enclosure |
Wedge frustum 5 degree side angle enclosure.Composite structure, 2 handles. |
| Finish |
White/Black semi-matt textured environmental friendly paint |

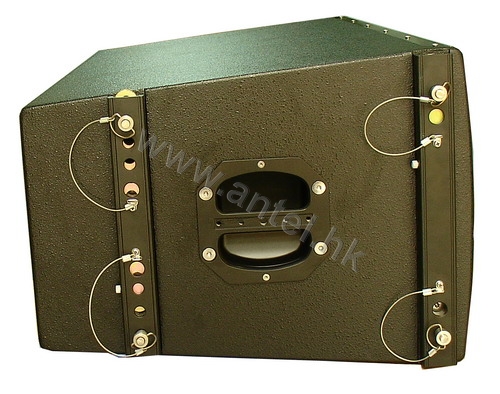

| Suspension System |
Integral hinge bars nest in rigging tubeosn box ends.Quick release pins with restraining lanyards |

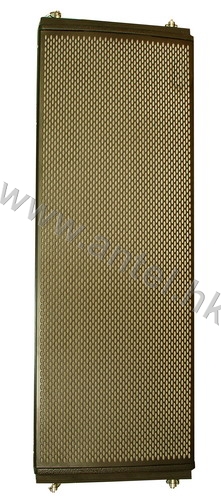

| Grille |
White/Black perforated Aluminum |

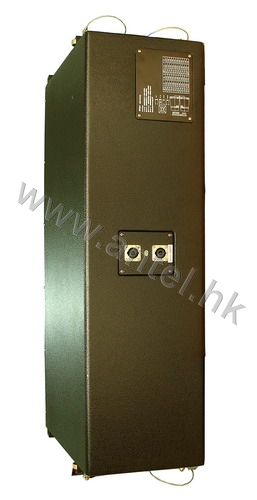

| Connector |
One Neutrik 8 pin connector |
| |
Dimensions (HxWxD) |
367mm x 1061mm x 508 mm |
