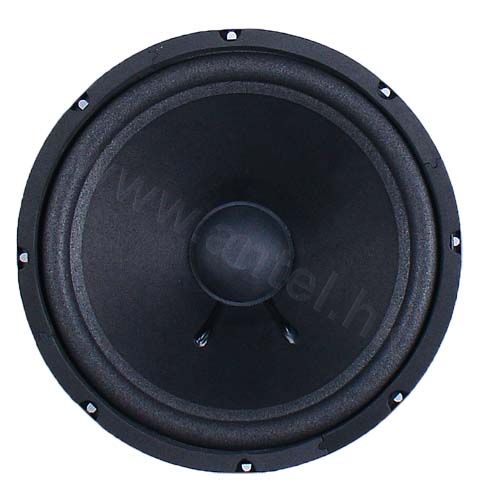

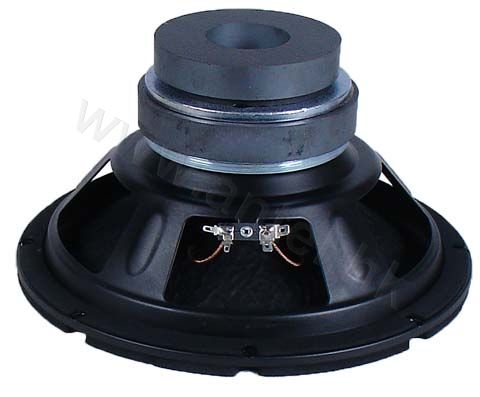

| Code: | YD255-15 |  |
| Name: |
 |
Specifications:
| Mode | YD255-15 |
| Rated Power(W) | 120 |
| Impedance(Ω) | 8 |

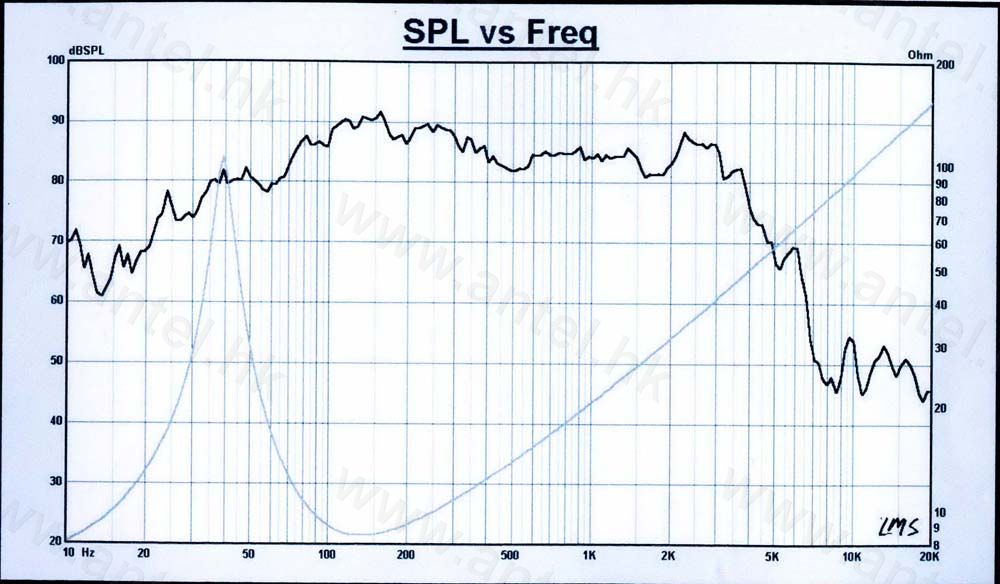

| Frequency Range(Hz) | 40~3000 |
| Sensitivity(dB) | 92 |
| Total Quality Factor(Qts) | 0.43 |
| Electrical Quality Factor(Qes) | 0.46 |
| Mechanical Quality Factor(Qms) | 7.05 |
| Voice Coil Diameter(Φmm) | 49.5 |
| Magnet Size(mm) | 120*20 & 100*18 |
| Speaker Size(Inch) | 10 |
| Dimension(Φ*H mm) | 257*135 |
